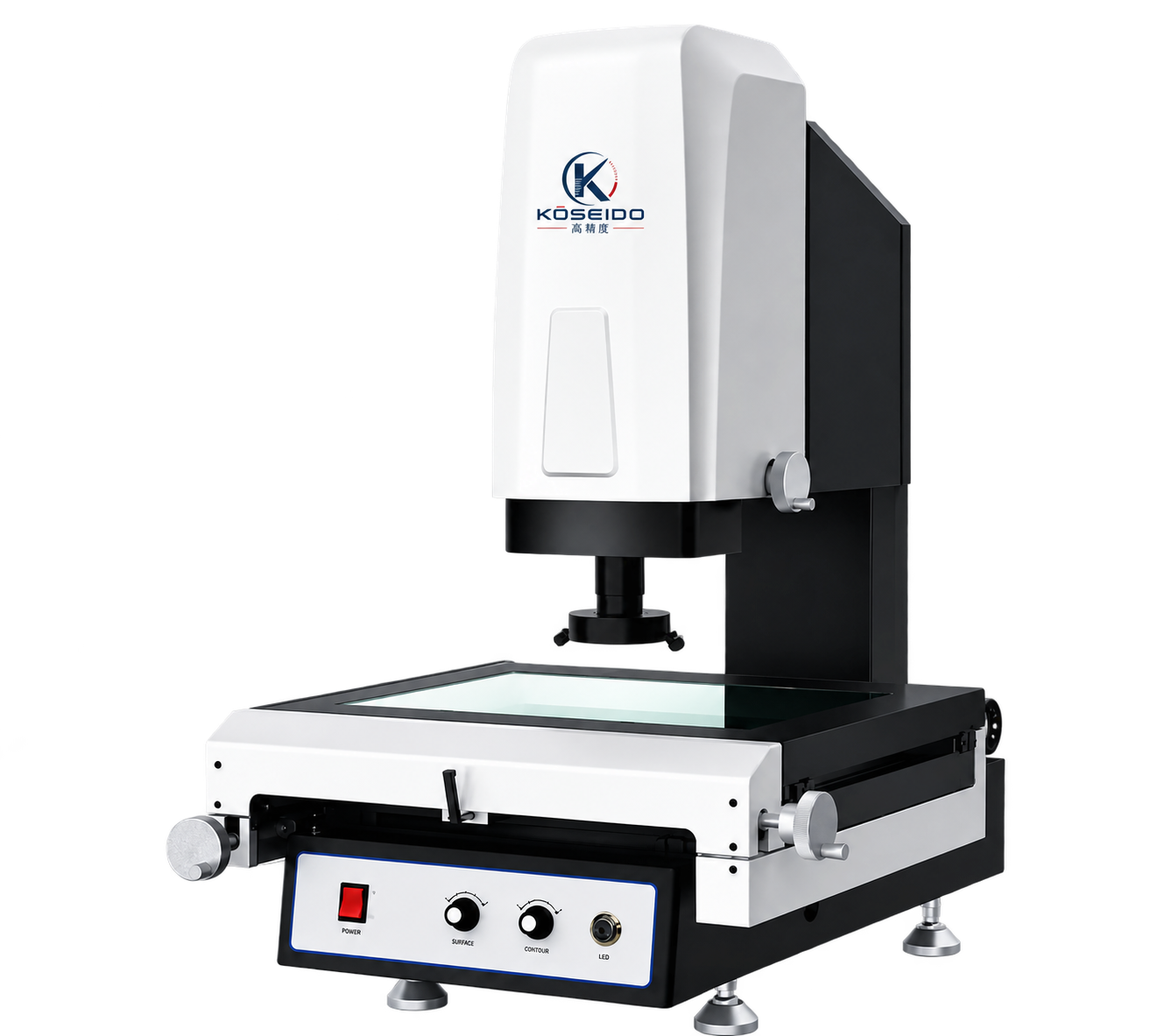

EJ Series

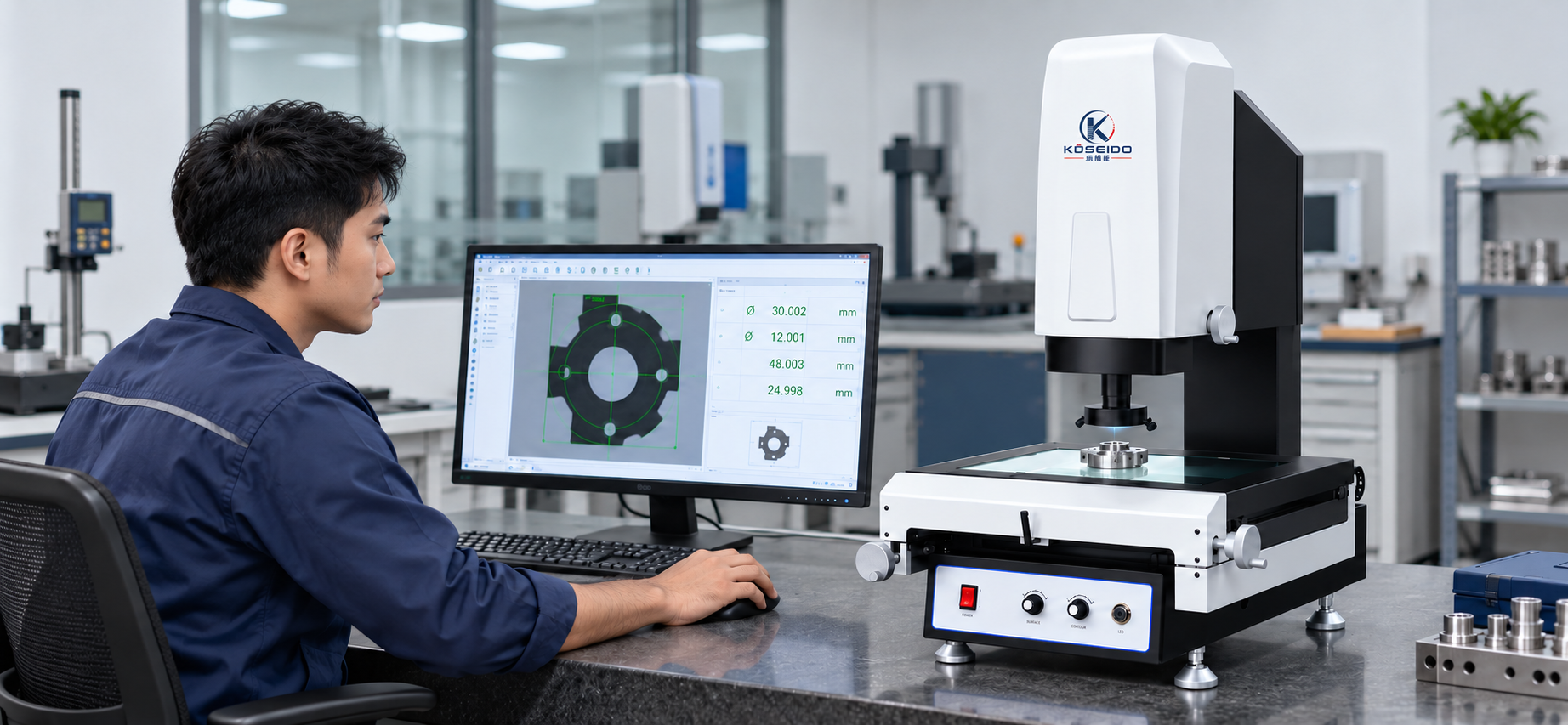

The EJ Series by Koseido delivers reliable, high-performance 2D dimensional measurement for demanding quality-control applications. Easy to operate and time-saving, it is ideal for inspecting electronics, PCBs, plastics, metal-stamped, injection-molded and die-cut components.
- Granite base and column for superior stability
- Precision optical scale with a high-accuracy worktable
- HD zoom lens and high-resolution camera
- Distortion-free imaging for reliable inspection
- Optional touch probe and 3D measurement upgrade
Zoom Lens
0.7x-4.5x
Monitor Magnification
40x-250x
Working Distance
90mm
Maximum Stage Loading
20kg
Product Description
The EJ Series delivers high reliability and excellent dynamic performance for precise dimensional measurement. Designed to meet stringent quality-control requirements, it is suitable for a wide range of industrial applications.
It enables accurate two-dimensional coordinate measurement while offering simple operation, faster inspection and improved productivity.
Ideal for inspecting mobile phones, tablets, LEDs, PCBs, plastic components, metal-stamped parts, injection-moulded products, die-cut components, electronic parts and other products requiring precise geometric measurement.
Technical Specifications
| Parameter | Value |
|---|---|
| Models Available | EJ200, EJ300, EJ400, EJ500 |
| Maximum Stage Loading | 20kg |
| X/Y Linear Accuracy | (2.5 + L/200)μm |
| Z Accuracy | (3.0 + L/50)μm |
| Camera | 1/2" GigE Color Camera, 1.3 MP |
| Resolution | 0.5 μm |
| Parameter | Value |
|---|---|
| Zoom Lens | 0.7x – 4.5x |
| Monitor Magnification | 40x – 250x |
| Power Supply | 220V, 50Hz |
| Working Distance | 90mm |
| Software | Koseido KJ-M-VM Measurement Software |
| Illumination Unit | White LED Ring Light + Green LED Transmission Parallel Light Source |
