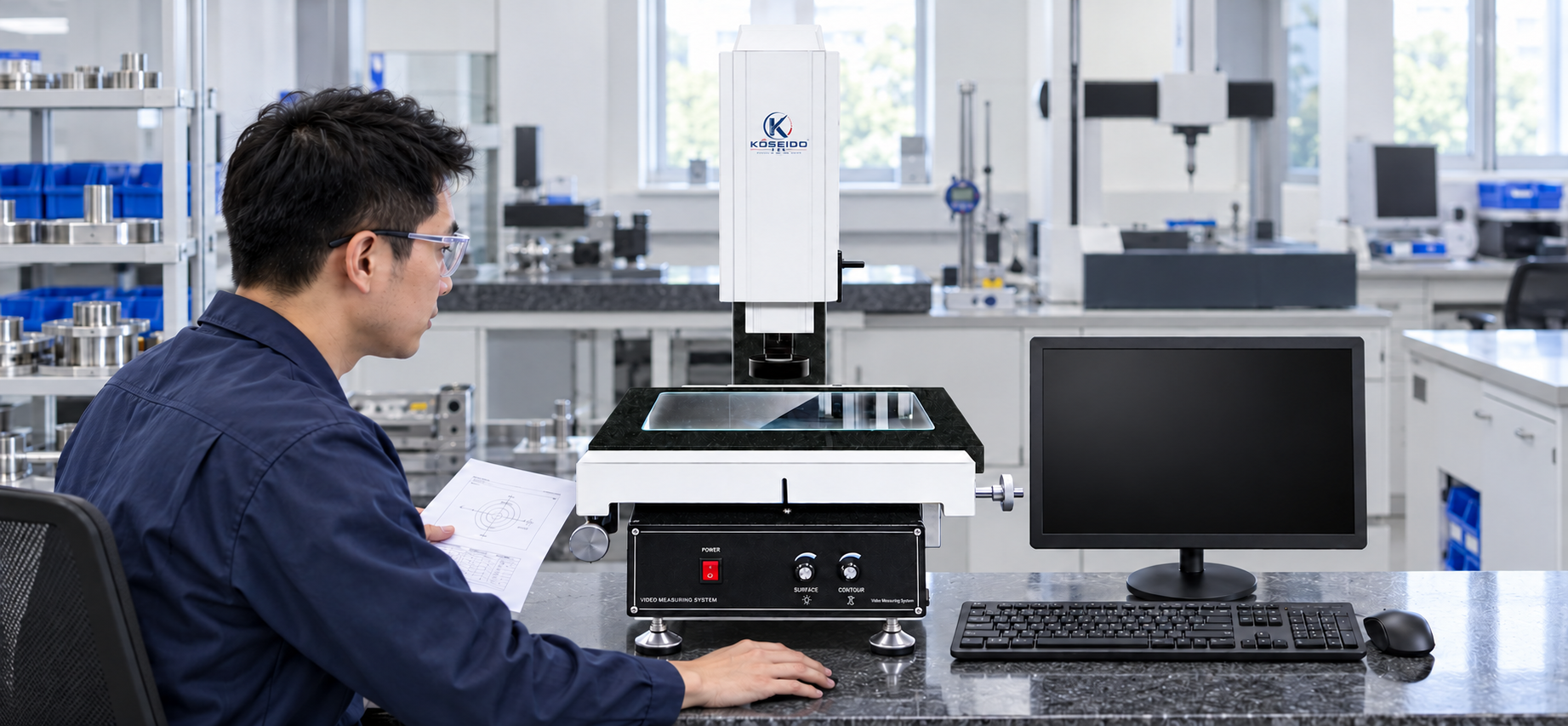

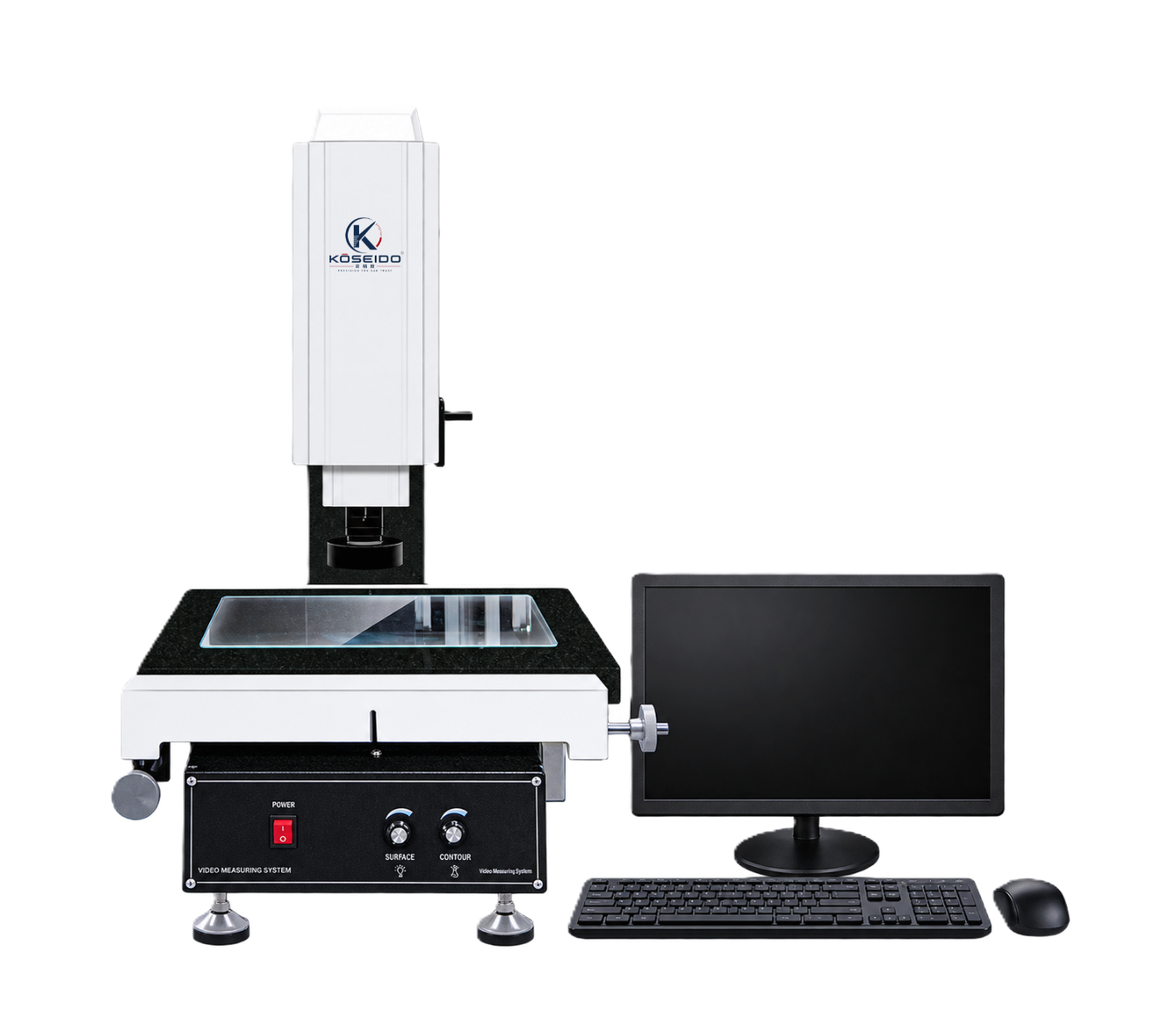

Manual Video Measuring System KJ-M4030H
The Manual Video Measuring System KJ-M4030H combines a stable granite structure with precise manual measurement across a 400 × 300 × 200 mm travel range. Its 1.3 MP camera, 0.5 µm resolution and KOSEIDO software support efficient inspection and reporting.
- Granite construction and a two-layer table reduce mechanical error; the balanced Z-axis moves smoothly
- 3 + L/200. Software supports Excel, tolerance alerts, sub-pixel, curve and virtual measurements
- 20–25°C; rigid, low-vibration floor; no corrosive gases
- Single-phase 220 V ±10%, 50 Hz; 1.3 A; 286 W
Zoom Lens
0.7x-4.5x
Resolution
0.5µm
Max Loading Weight
20kg
Power
286W
Product Description
The Manual Video Measuring System KJ-M4030H is designed for quick, reliable measurements in quality control. Its granite base and column provide a stable foundation, while the durable granite worktable supports accurate operation. The system offers a 400 × 300 × 200 mm X–Y–Z stroke, with a 570 × 460 mm granite size and 428 × 328 mm stage glass.
A 1.3 MP GIGE colour camera, 0.7×–4.5× zoom lens and 40×–250× monitor magnification support clear observation. The 0.5 µm resolution and linear encoder help capture measurement data. It also supports sub-pixel measurement, curve measurement and virtual measurement using mapping. White LED transmitted illumination completes the system, which operates on 220 V AC, 50 Hz and supports a maximum load of 20 kg.
Technical Specifications
| Parameter | Value |
|---|---|
| Granite size | 570 X 460 |
| Stage glass size | 428 X 328 |
| E1X, E1Y accuracy | (3 + L/200) µm |
| E1Z accuracy | (5 + L/50) µm |
| Working distance | 90 mm |
| Zoom lens | 0.7×–4.5× |
| Monitor magnification | 40×–250× |
| Power supply | 220 V AC, 50 Hz |
| Parameter | Value |
|---|---|
| Resolution | 0.5 µm |
| Scale type | Linear encoder |
| Guide rail | Double V ball guide rail |
| Controller | UWC3200 |
| Computer (optional) | Any computer with 21.5-inch PC, keyboard and mouse |
| Maximum loading weight | 20 kg |
| Packing dimensions | 1140 × 1140 × 1150 mm |
| Software | KOSEIDO KJ-M-VM System Software |
