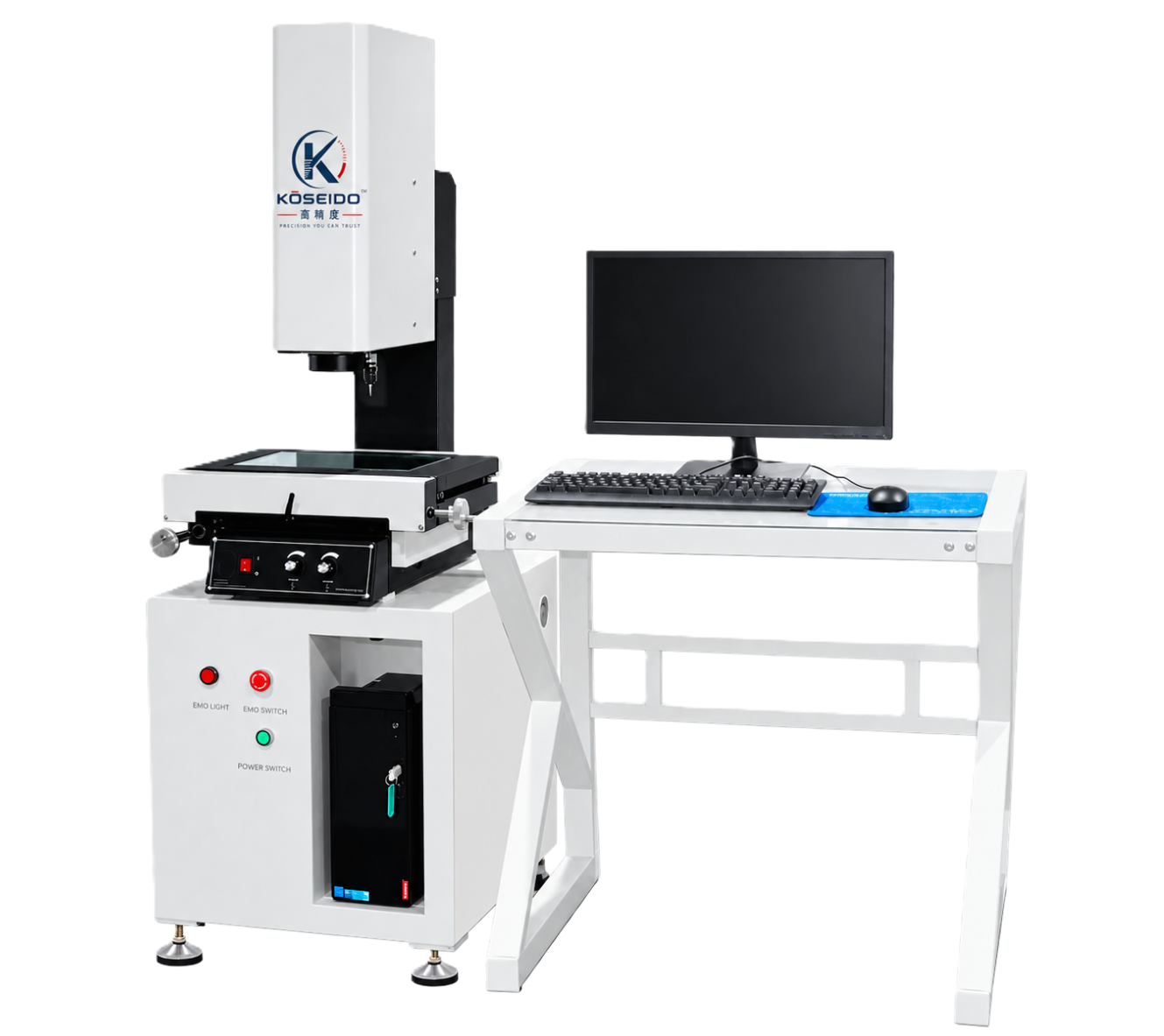

Semi-auto Video Measuring System KJ-3020
The Semi-auto Video Measuring System KJ-3020 combines a stable granite structure with motorised Z-axis movement and zoom for efficient measurement. It features a 300 × 200 × 200 mm travel range, 0.5 µm resolution and KOSEIDO software with Excel data connection.
- Granite base, column and table offer stable, durable support
- Two-layer table reduces mechanical error; balanced Z-axis ensures smooth movement
- X–Y and single-axis accuracy: 3 + L/200
- Software supports Excel data, tolerance alerts, sub-pixel, curve and virtual measurements
- Operate at 20–25°C on a stable, low-vibration floor
Zoom Lens
0.7x-4.5x
Resolution
0.5µm
Max Loading Weight
20kg
Power
700W

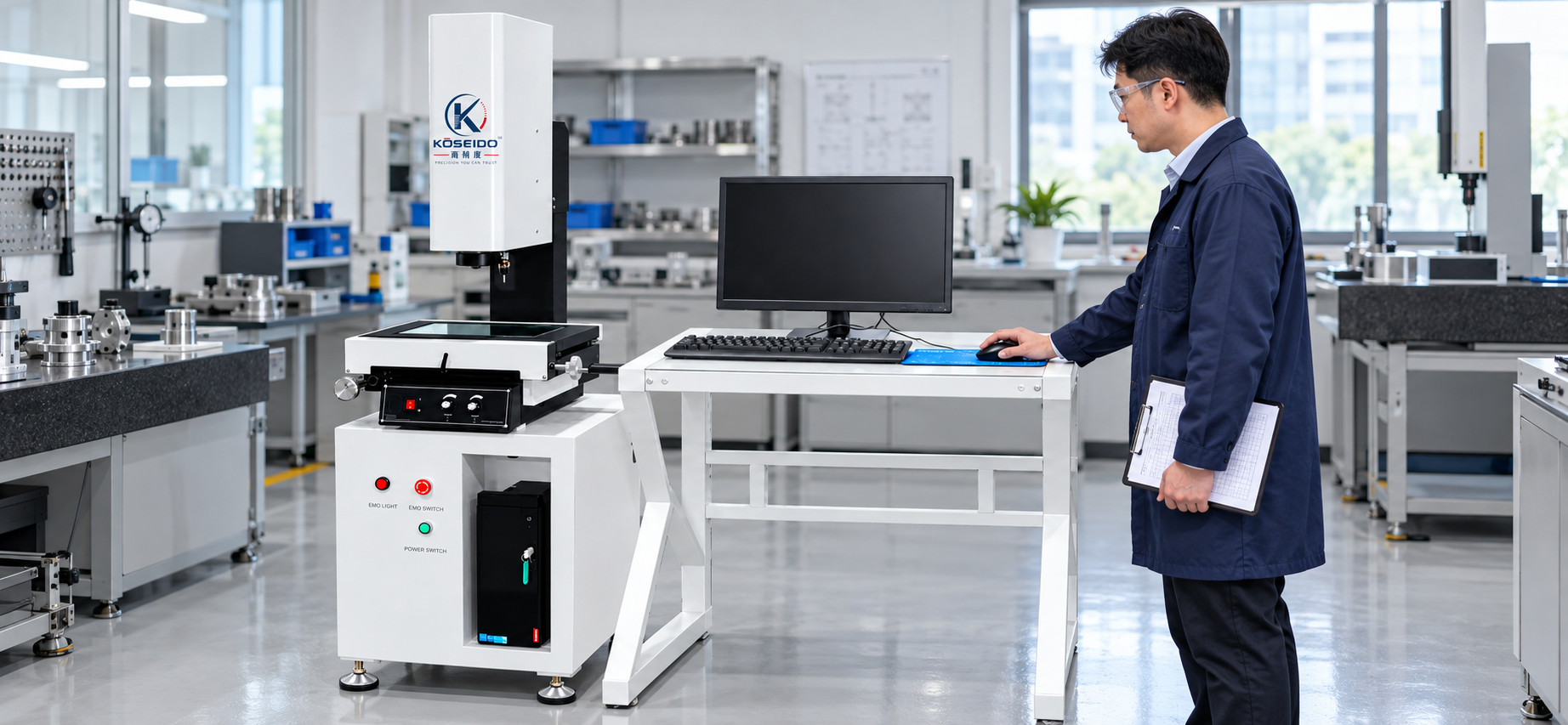

Product Description
The Semi-auto Video Measuring System KJ-3020 is designed for reliable, efficient measurement and quality control. Its granite base and column, durable worktable and two-layer table structure provide stability and help reduce mechanical error.
Its 1.3 MP GIGE colour camera, 0.7×–4.5× zoom lens and 40×–250× monitor magnification support clear observation. Motorised Z-axis movement works with the motorised zoom lens to reduce measurement time and operator effort.
KOSEIDO software connects measurement data with Excel and offers tolerance alerts, sub-pixel measurement, curve measurement and virtual measurement through mapping. It operates at 20–25°C, with 30%–60% humidity, and uses a single-phase 220 V ±10%, 50 Hz supply.
Technical Specifications
| Parameter | Value |
|---|---|
| Granite size | 470 × 350 mm |
| Stage glass size | 328 × 228 mm |
| X- and Y-axis accuracy (E1X, E1Y) | (3 + L/200) µm |
| Camera | 1/2″ GIGE colour camera, 1.3 MP |
| Working distance | 90 mm |
| Zoom lens | 0.7×–4.5× |
| Monitor magnification | 40×–250× |
| Power supply | 220V (AC), 50 Hz |
| Parameter | Value |
|---|---|
| Resolution | 0.5 µm |
| Scale type | Linear encoder |
| Guide rail | Double V ball guide rail |
| Controller | UWC3200 |
| Computer (optional) | Any computer with 22-inch PC, keyboard and mouse |
| Maximum loading weight | 20 kg |
| Packing dimensions | 1050x1180x1820 |
| Software | KOSEIDO KJ-M-VM System Software |
